Applications of 3-4.5 Ton Hydraulic Vibratory Roller:
Our 3-4.5ton hydraulic vibratory roller is mainly used in highway municipal work, country road, stadium and many other different projects.

Main Features of 3-4.5 Ton Hydraulic Vibratory Roller:
This kind of hydraulic vibratory roller has features of compact structure, reliable performance, flexible steering, stable performance, and so on.

1.Reliable mechanical travel and vibration performance.
2.Scraper and sprinkling devices on all drums.
3.Four-wheel trailers are available.

4.This 3-4.5ton hydraulic vibratory roller is designed with high-efficient hydraulic vibration mode.

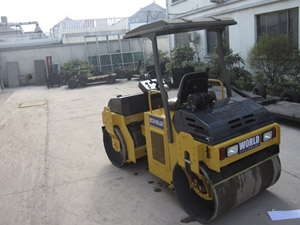

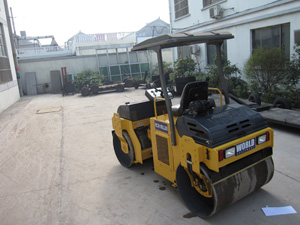

Hydraulic Vibratory Roller
3-4.5 Ton Hydraulic Vibratory Roller 3-4.5 Ton Hydraulic Vibratory Roller 3-4.5 Ton Hydraulic Vibratory Roller 3-4.5 Ton Hydraulic Vibratory Roller

3-4.5 Ton Hydraulic Vibratory Roller

Technical Parameters of 3-4.5 Ton Hydraulic Vibratory Roller:
Specifications RC3H RC3.5H RC4.5H
Operation weight (T) 3 3.5 4.5
Diameter of vibrating drum (mm) 760 760 860
Rolling width (mm) 1200 1250 1320
Static Linear pressure (N/CM) 135 140 170
Centrifugal force (KN) 32 30 X2 38X2
Vibration frequency (Hz) 50 50 50
Theoretical amplitude of vibration(mm) 0.62 0.45 0.5
Moving speed range I (KM/h) 0-2.5 0-10 0-7.5
Moving speed range II 0-7.2 / 0-10.6
Grade ability 30% 30% 30%
Diesel engine model N385Q ZN390Q 4L68
Rated Speed 2400 2600 2600
Rated power (KW) 21 25 40
Overall Dimensions (mm) L×W×H 2940×1300×2400 2900×1370×2600 3120×1460×2560

World Equipment is a professional manufacturer and supplier of hydraulic vibratory roller in China. We offer 3 ton hydraulic roller, 3.5 ton hydraulic roller and 4 ton hydraulic roller for your choice. Our products have been well received in Europe, South America, Middle East, Southeast Asia and Africa, etc. Over the past 10 years, we have kept improving our products to make them better adapt to the market. If you need hydraulic vibratory roller, we will provide a competitive price for you. Don't hesitate, please contact us.
