Structural Features of Skid Steer Loader:
1. Our skid steer loader have the solid overall structure: hydraulic oil tank, fuel tank, the sprocket gearbox and frame are together. Skid steer loaders the structure is more sturdy, the space is decorated reasonably compact, lifting arm with heavy burden-resistance is more reliable.
2. Safe and comfortable operating environment: ROPS and FOPS cabin.
3. Automatic parallel system: the bucket equipped with automatic leveling valve remains level during the lifting process.
Configuration Features of Skid Steer Loader
The international first-class brand of components: skid steer loader special hydraulic pump and motor are imported and original, bearings are international first-class brand, control triparte valves of high quality and hydraulic servo handle can ensure sensitivity and accuracy of operating.

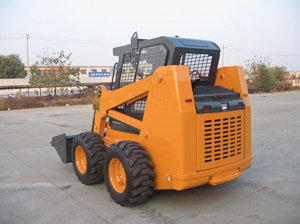

Skid Steer Loader
The core power of world class quality: optional imported engine, ultra-low emission, minimum to Tier2 or Tier3, ultra-low noise, can meet the more strict requirement of green environmental protectionMaintenance:
Our skid steer loader maintenance is easier: rear cover can completely open, cabin can make a large-angle tipping, which makes daily maintenance easier.
Driving system with long service life and easy maintenance: Using high strength chain pre-tensioning to drive skid steer loaders, hydraulic motor drives through the both chains well designed to the wheels, making it easier to adjust and maintain, which can ensure the chain transmission efficiency and longer service life.
Unique structural features: small volume, light weight, small turning radius, multi-usage, which makes skid steer loader widely used in various situations.
1. Road civicism maintenance system: city road miller, cleaning, push to sweep the snow, smashing, etc.
2. Cleaning the scattered material, unstuffing and handling, etc of the ports.
3. Handling and cleaning the gushed arenaceous material of shipyard, cleaning the dropped slag of power plant and steel mill.
4. Loading and unloading, cleaning bulk material of different narrow space of mines, buildings, factories etc.
Main Specification of Skid Steer Loader
|Engine||Rated power (Kw)||36.8kw (50hp)||45kw (61.2hp)||45kw (61.2hp)||47kw (64hp)|
|Rotating Speed (rpm)||2650||2500||2500||2500|
|Noise||In cab (dB)||≤92||≤92||≤92||≤92|
|out of cab (dB)||≤106||≤106||≤106||≤106|
|Hydraulic System||Cycle Time (s)|
|Performance||Operating Load (kg)||650||750||850||950|
|Bucket Capacity (m3)||0.47||0.55||0.4||0.55|
|Max lifting force (kg)||1060||1610||1134||1885|
|operating weight with standard bucket (kg)||2900||3520||2840||3500|
|Max. height (mm)||3970||3900||3660||3900|
|Dump height (mm)||2100||2200||2200||2200|
|height to top of cab (mm)||2090||2300||1460||2300|
|overall length with bucket (mm)||3525||3500||3365||3500|
|Dump distance (mm)||750||640||300||640|
|overall length without bucket (mm)||2700||2800||2430||2800|
|Bucket width (mm)||1720||2020||1720||2020|
|overall length to outside of tyre (mm)||1760||1980||1678||1980|
|Ground clearance (mm)||210||190||120||190|
|clearance circuit front (mm)||2090||2200||2090||2200|
|Dump angle at max height (°)||45°||45°||35°||45°|
|Max attachment rollback when bucket on ground (°)||31°||31°||29°||31°|
|Angle of departure (°)||23°||20°||16°||20°|
World Equipment is a Chinese manufacturer and supplier of skid steer loader. Our products have already been exported to Europe, South America, Middle East, Southeast Asia and Africa. We have clients in Congo, Tanzania, Russia, Algeria, Philippines, Kazakhstan, Iran, Saudi Arabia, Nigeria, Singapore, Indonesia, Malaysia, The United Arab Emirates, South Africa, Australia, and Sudan. We can always gain the trust of clients thanks to the products' high quality, the competitive price, profound industrial experience. If you need Skid Steer Loader, please contact us without hesitation.
