Description of Wheel Loader:
The wheel loader is a kind of construction machine of earth and stone, mainly used in the construction of roads, railways, houses, hydroelectric (power) stations, ports, and mines. And it is mainly used to shoveling soil, ores, and pan soil. Working together with different auxiliary devices, it can bulldoze, lift, load and unload materials like lumbers. It can also be employed to dig and fill roadbeds, aggregate and load asphalt mixture and cement concrete soil ground in the road construction, especially high-caliber road construction. Moreover, it can be utilized in bulldozing soil, slicking the ground, and towing other machines.
Featuring rapid operational speed, high efficiency, fine mobility and flexible movement, this wheel loader is an essential machine in the field of earth and stone construction.

In the following, some detailed features of our W136 and W156 wheel loaders will be given.

Features of W136 Wheel Loader:
1. Compared with other similar products, it has the advantages of energy saving, low oil consumption, and environmental friendliness.
2. The W136 wheel loader featuring strong structure strength, low operation costs, and easy and convenient maintenance.
3. Its fully exemplifying human-oriented design makes it more comfortable for operators to use.
4. It also has characteristics of harmonious overall layout, advanced design allocation, excellent performance, and flexible mobility and high efficiency.

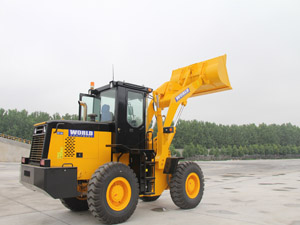

Wheel Loader

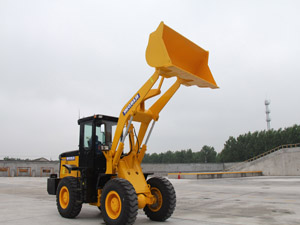

Wheel Loader

Wheel Loader

Features of W156 Wheel Loader:
1.This W156 wheel loader features high-quality engine, low oil consumption, low noises, and reliable performance.
2.It has been designed with double-turbo hydraulic torque converter, and high-efficient planet-power shifting transmission.
3.Developed on the basis of advanced European technology, its fortified axles have stronger loading capacity, large driving force, and more reliable and stable performance.
4.Its integral instrument platform is of reliable quality, durability, long service lifespan, and elegant appearance.
5.Its rear frame is fitted with box structure, and hinged panels with low stress and high strength steel.

6.Most of the components f W156 wheel loader, like cylinders, pumps, valves, are from international famous brands, which ensure the stability and reliability of this loader.

Main Specification of W136 Wheel Loader

Main standard Configuration of W136 Wheel Loader
1 Bucket Capacity 1.8M³
2 Rated Load 3200kg
3 Travelling Speed
Forward 1st 0-10.8km/h
Forward 2nd 0-32.5km/h
Reverse 1st 0-14.5km/h
4 Max. Traction 97±5kN
5 Max.Break Out Force 100±5kN
6 Min. Turning Radius (outside tires) 5376±50mm
7 Max. Dumping Height 3060±50mm
8 Max. Dumping Reach 1008±50mm
9 Total Hydraulic Cycle Time ≤10.3s
10 Full Bucket Lifting Time ≤5.6s
11 Wheel Base 2750±30mm
12 Tread Width 1800±10mm
13 Dimensions (L×W×H) 6970±100×2245±50×3286±50mm
14 Min. Clearance Over Ground 360±20mm
15 Operating Weight 10000±100kg
Diesel Engine
1 Diesel Engine Model of W136 Wheel Loader YuChai Duetz Cummins 6BT5.9-C130
2 Type Direct injection,  water cooling, 4 strokes,
3 Rated Output 92kW 92kW 97kW
4 Rated Speed 2200rpm
5 Max. Torque 460N.m 500N.m 560N.m
Transmission
1 Model self made
2 Rated Input Speed 2200rpm
3 Transmission Type two forward and one reverse gears/power shift, planet type
Mechanical Gear Ratios
1 Gear I 2.576
2 Gear II 0.691
3 Reverse 1.8846
4 Hydraulic Oil Pressure 1.10-1.40Mpa
5 Inlet Oil Pressure Of Torque Convertor 0.33-0.5Mpa
6 Outlet Oil Pressure Of Torque Convertor 0.1-0.20Mpa
7 Lubricating Oil Pressure 0.1-0.20Mpa
8 Max. Permissible Temp & Outlet Of Torque Convertor 120℃
Transaxle & Tyre
1 Transaxle Type Fenyi
2 Drive System 4 wheel drive
3 Rear Axle Oscillation Center oscillation
4 Oscillating Angle of Rear Axle                      12°
5 Carrier Assembly Reduction Ratio 4.375
6 Wheel End Reduction Assembly Reduction Ratio 4.75
7 Tire  17.5-25
8 Pressure Of Tire 0.28-0.32MPa
Working Hydraulic System
1 Working Pump Type Gear Pump
2 System Working Pressure 16MPa
3 Lifting Cylinder Bore × Stroke 125×816mm
4 Tilting Cylinder Bore × Stroke 140×553 mm
Steering System
1 Type full hydraulic power steering system
2 Steering Pump Type CBY2050  (reverse)
3 Max. Working Pressure 10MPa
4 Steering Cylinder Bore × Stroke 80×340mm
5 Max. Steering Angle ±36º
Brake System
1 Type Air over hydraulic disc on four wheels brakes
Oil Injection Capacity
1 Fuel Tank 150L
2 Engine Oil 15L
3 Transmission 27L
4 Hydraulic Oil Tank 140L
5 Transaxle 30L

Main Specification of W156 Wheel Loader

Main standard Configuration W156 Wheel Loader
1 Bucket Capacity 3.0M³
2 Rated Load 5000kg

3

 Travelling Speed
Forward 1st 0-11.5km/h
Forward 2nd 0-37.5km/h
Reverse 1st 0-17km/h
4 Max. Traction 165±5kN
5 Max.Break Out Force 150±5kN
6 Min. Turning Radius (outside tires) 6700±50mm
7 Max. Dumping Height 2970±50mm
8 Max. Dumping Reach 1200±50mm
9 Total Hydraulic Cycle Time ≤11.1s
10 Full Bucket Lifting Time ≤5.76s
11 Wheel Base 3427±30mm
12 Tread Width 2300±10mm
13 Dimensions (L×W×H) L:8075×W:2960×H:3500mm
14 Min. Clearance Over Ground 380±20mm
15 Operating Weight 16200±200kg
Diesel Engine
1 Diesel Engine Model of W156 Wheel Loader WEICHAI WD615 WD615 CATERPILLAR C6121 C6121 CUMMINS6CTA8.3-C215
666CTA8.3-C215
2 Type Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders
3 Rated Output 162kW 162kW 160kW
4 Rated Speed 2200rpm
5 Max. Torque 855N.m 860N.m 908N.m
Transmission
1 Model ZL50 Hangzhou Advance Gearbox Group Co., Ltd
2 Rated Input Speed 2200rpm
3 Transmission Type two forward and one reverse gears/power shift, planet type
Mechanical Gear Ratios
1 Gear I 2.4346
2 Gear II 0.6532
3 Reverse 1.7814
4 Hydraulic Oil Pressure 1.10-1.40Mpa
5 Inlet Oil Pressure Of Torque Convertor 0.30-0.45Mpa
6 Outlet Oil Pressure Of Torque Convertor 0.20-0.30Mpa
7 Lubricating Oil Pressure 0.10-0.20Mpa
8 Max. Permissible Temp & Outlet Of Torque Convertor 120℃
Transaxle & Tyre
1 Transaxle Type self-made by Meritor technology
2 Drive System 4 wheel drive
3 Rear Axle Oscillation Center oscillation
4 Oscillating Angle of Rear Axle 13°
5 Carrier Assembly Reduction Ratio 4.625
6 Wheel End Reduction Assembly Reduction Ratio 4.94
7 Tire  23.5-25
8 Pressure Of Tire 0.28-0.32MPa
Working Hydraulic System
1 Working Pump Type Gear Pump
2 System Working Pressure 17MPa
3 Lifting Cylinder Bore × Stroke 165×757mm
4 Tilting Cylinder Bore × Stroke 200×540 mm
Steering System
1 Type Articulation, full hydraulic power steering system with flow-amplified system
2 Steering Pump Type CBGJ2080
3 Max. Working Pressure 12MPa
4 Steering Cylinder Bore x Stroke 100×342mm
5 Max. Steering Angle 35º±1º
Brake System
1 Type Air over hydraulic disc on four wheels brakes
Oil Injection Capacity
1 Fuel Tank 300L
2 Engine Oil 30L
3 Transmission 45L
4 Hydraulic Oil Tank 200L
5 Transaxle 30L

Attentions for Wheel Loader Operation:
1.Before put into use, the maintenance instructions or operation maintenance brochures of the wheel loader should be read carefully so as to avoid unnecessary accidents.
2.Drivers should wear necessary protection devices according to its safety requirements.
3.Warning sign should be made clear on the operation site.
4.If the mental states of drivers are not very well, he or she should not be allowed to operate the wheel loader.
5.When maintained or examined in the central hinge zone, this loader should be fixed firmly with a shaft to avoid rotating.
6.Users should climb up and down the wheel loader along its ladder and handrails when the machine is in steady stop.
7.Its swing arm should be padded with a firm and reliable foundation if it is lifted to maintain. And the phenomenon that the arm falls off should always be avoided.

World Equipment is a professional manufacturer and supplier of wheel loader in china. We provide clients worldwide with two popular products: W136 wheel loader and W156 wheel loader. With more than 10 years' export experience, we have accumulated abundant clients and production experience. We have clients in Congo, Tanzania, Russia, Algeria, Philippines, Kazakhstan, Iran, Saudi Arabia, Nigeria, Singapore, Indonesia, Malaysia, the United Arab Emirates, South Africa, Australia, Brazil, and Sudan. If you need wheel loader, please contact us.
