Home » Products » Paver » 2LTLZ60 Asphalt Paver

Description
2LTLZ60 asphalt paver is applicable for paving highway, urban road and plaza; square and so on. Such road paver is ideal equipment for construction companies. It is characterized by compact structure and easy operation. Equipped with advanced double sets of hydraulic stretching screed and auto level sensing device, 2LTLZ60 road paver features high paving density and smoothness. International advanced antifriction materials are adopted so that this asphalt road paver is wear resistant and reliable.

Key Parts of 2LTLZ60 Road Paver
1. DEUTZ Engine with Air Cooling
2. Hydraulic Pump from Germany Stauff Corporation
3. Hydraulic Vibrating Motor from Tianjing Hydraulic Mechanical Factory
4. Transfer Case from the Second Motorcar Company
5. Control Valves from Beijing HUADE
6. Automatic Leveling Device from Advanced Domestic Brand
7. High and Low Pressure Directional Control Valve from Italy Atos Corporation
8. Brake Distributing Valve from USA Parker Corporation

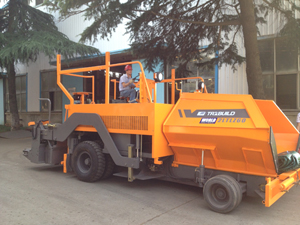

2LTLZ60 Asphalt Paver

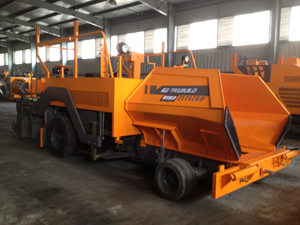

2LTLZ60 Asphalt Paver

Main Performance Features of 2LTLZ60 Road Paver
1.86 Kw DEUTZ engine with air cooling is adopted to guarantee strong power, reliability and start ability in low temperature environment.
2. Automatic leveling device can satisfy the grade criterion of freeway in the range of grade 3mm/3m and slope of 2/1000. It can avoid invalid fill of mixing material so as to lower construction cost.
3. Screed can be extended steplessly. Electric and hydraulic system is easy to control. The time to assemble the screed can be reduced. The screed is heated by automatic ignition.
4. Stretching screed, iron soleplate and conveyor soleplate make use of international advanced antifriction material.
5. Centralized lubrication device realizes auto lubrication for high temperature and moving parts.
6. Fuel oil electrical cleaning system makes convenient clean and reduces work intensity.
7. With advanced electric system, all controlled components connected to wire are in accordance with code so that the errors can be immediately found and solved.
8. All control elements are arranged on console which can be moved to L/R according to different requirements. Therefore, 2LTLZ60 road paver features convenient operation, lower work intensity, improved work efficiency and high paving quality.

Performance Parameters of 2LTLZ60 Road Paver

Model 2LTLZ60
Type Tyre
Basic Paving Width 2800 mm
Maximum With of Extension 5000 mm
Maximum Width of Paving 6000 mm
Maximum Thickness of Paving 250 mm
Minimum Thickness of Paving 10 mm
Traveling Speed 2.30~16.84 km/h
Paving Speed 3.07~9.16 m/min
Maximum Theoretic Productivity 300 t/h
Hopper Capacity 12 t
Maximum Climbing Capacity 20%
Mass 12-14 t
Overall Size Length 6394 mm (Transportation 6064 mm)
Width 3000 mm (Transportation 2733 mm)
Height 3695 mm (Transportation 2888 mm)
Engine Model F6L913
Type Air Cooling with 6 Cylinders
Power 86 Kw/2300 r/min
Diesel Oil Tank Capacity 200L
Electric System Two Batteries, 24V
Load Mode Six Tyres The front tyres are solid, and the rear tyres are pneumatic.
Traveling Device Transfer Case, Gear Box with Two Grades, Differential Mechanism, Semi-Axle and Chain Drive

Performance
1. Steering mechanism adopts bridge mode and center of bridge which is able to revolve is connected to center of frame, redirectors are fixed on the two ends of the axle, redirectors are revolved by hydraulic cylinder, and so solid tyre can be revolved corresponding angle.
2. The machine is driven mechanically and hydraulically. Flywheel is connected to transfer case, the front is connected to double pump, supplying power for mechanism like traveling device (conveyor and auger spreading device) and vibrating device (up and down of screed, turnover of hopper and action of cylinders, etc.).
3. Roller is used to push the rear tyre of camion.
4. Conveyor is independently driven, the clutch for conveyor is controlled by hydraulic cylinder, and power is transferred by chain-wheel to drive scraper.
5. 2LTLZ60 road paver is equipped with one slope and one grade automatic level device, used for automatic adjustment of slope and grade.
6. Working Device:
Double Sets of Hydraulic Stretching Iron Plate:
1. Iron plate:
Basic Width: 2800 mm
Arch Adjustment: 0~4%
2. Vibrating Frequency: 50Hz

World Equipment Co., Ltd. a wholly owned subsidiary of World Equipment Inc. is a maker and supplier of road paver or asphalt paver. Manufactured to the highest standards of technology, quality and reliability, and priced extremely competitively, it is little wonder that our brand has been extremely well received globally. Our excavator (digger), wheel Loader, crawler bulldozer, road roller, motor grader, skid steer loader and asphalt road paver have been exported to European, South-America, Middle-east, South-east and Africa.
