Main Features Of Compact Excavator (Mini Crawler Excavator)
The compact excavator (mini crawler excavator) is equipped with blade so that it has the functions of excavating and bulldozing. It can be used in the fields like municipal project, road construction, garden maintenance and so on. Our compact excavator (mini crawler excavator) is multi-functional and can be operated even in the narrow space. The high efficient swing function operates easier and makes it easier to work in narrow space.

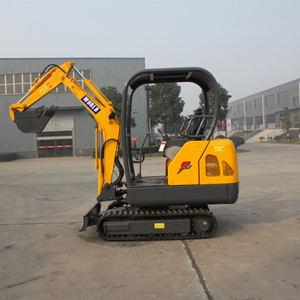

Compact Excavator (Mini Crawler Excavator)

Main Specification Of Compact Excavator (Mini Crawler Excavator)

Items		Models
Items		W218	W265-8	W285-8	W295
Engine System
Brand & Origin		Perkins (England)	Yanmar (Japan)	Yanmar (Japan)	Isuzu (Japan)
Model		403D-11	4TNV94L-SFN	4TNV98T-SFN	AA -4BG1TCG-04
Rated Power (kw/rpm)		14.7/2200kw/rpm	39/2200kw/rpm	53.1/2200kw/rpm	89.3/2200kw/rpm
Max. Torque (Nm)		66.8/1900Nm/rpm	197-214Nm/1000±100rpm	286.9~312.7Nm/1000±100rpm	449/1800Nm/rpm
Idle Speed (rpm)		1000rpm	1100rpm	1000rpm	950rpm
Engine Displacement (L)		1.131L	3.054L	3.318L	4.329L
Cylinder No.-Bore × Stroke (mm)		3-77mm×81mm	4-94mm×110mm	4-98mm×110mm	4-105 mm /125 mm
Engine Oil Capacity (L)		3.4~4.4L	6.7~12L	5.3-12L	11-13.2 (L)
Fuel Tank Capacity (L)		27L	122L	148L	217L
Fuel Consumption Rate (g/kw.h)		260g/kw.h or less	235g/kw.h or less	244g/kw.h or less	227g/kw.h or more
Hydraulic System
Main Pump	Brand & Origin	Nachi (Japan)	Rexroth (Japan)	Toshiba (Japan)	Doosan from Korea
	Rated Pressure (MPa)	21MPa	21.5MPa/21.5MPa/2.9MPa	27.5MPa	30MPa
	Nominal Displacement (cm3/rev)	9+9+6.4+2.7 (cm3/rev)	25×2+16.2+4.5 cm3/rev	90 cm3/rev	2×63L/min
Multiple Unit Valve	Brand & Origin	Parker (Korea)	Jeil (Korea)	Toshiba (Japan)	Parker from Korea (Hyundai Logo)
Multiple Unit Valve	Rated Pressure (MPa)	21.5MPa	21.5MPa	27.5MPa	32MPa
Hydraulic Motor	Travel Motor Brand & Origin	Comer (Italy)	Jeil (Korea)	Jeil (Korea)	Doosan from Korea
	Traveling Speed (H/L km/h)	4.5/2.5km/h	4.0/2.2 km/h	3.7/2.1 km/h	3.63/5.92 km/h
	Swing Motor Brand & Origin	Eaton (China)	Jeil (Korea)	Toshiba (Japan)	Jeil (Korea)
	Swing Speed (r/min)	10r/min	9.6rpm	11rpm	13.6rpm
Hydraulic Cylinder	Boom Cylinder (mm)	60mm×35mm	110mm×65mm	110mm×75mm	φ110×1030×φ75
	Arm Cylinder (mm)	60mm×35mm	85mm×55mm	100mm×65mm	φ120×1175×φ90
	Bucket Cylinder (mm)	60mm×35mm	80mm×50mm	90mm×55mm	φ105×885×φ75
Hydraulic Oil Tank Capacity (L)		27-31L	80L	112L	217L
Working Specifications
Weight (kg)		1800kg	5800kg	8250kg	13600kg
Bucket Capacity (m3)		0.05 m3	0.25m3	0.36m3	0.6m3
Bucket Width (mm)		426mm	674mm	755mm	1050mm
Bucket Digging Force (kN)		14kN	36.7kN	63kN	85kN
Arm Digging Force (kN)		9kN	32.6kN	50kN	67kN
Ground Pressure (KPa)		28KPa	32KPa	37KPa	0.412kg/cm2
Grade ability		58%	70%	70%	35℃
Max. Digging Depth (mm)		2116mm	3750mm	4231mm	5953mm
Max. Digging Height (mm)		3406mm	5650mm	7150mm	8358mm
Max. Digging Radius (mm)		3705mm	6090mm	6802mm	8250mm
Max. Discharging Height (mm)		2265mm	4032mm	5139mm	6111mm
Min. Ground Clearance (mm)		153mm	364mm	367mm	481mm
Min. Swing Radius (mm)		1618mm/1225mm	2398mm/1658mm	2074mm/1791mm	2468mm
Overall Dimensions (mm)		3825mm× 1100mm× 2240mm	5900mm× 1920mm× 2600mm	6502mm× 2320mm× 2601mm	7997mm× 2600mm× 2840mm

World Equipment is a professional manufacturer and supplier of compact excavator (mini crawler excavator) in China. Our products have already been exported to Europe, South America, Middle East, Southeast Asia and Africa. We have clients in Congo, Tanzania, Russia, Algeria, Philippines, Kazakhstan, Iran, Saudi Arabia, Nigeria, Singapore, Indonesia, Malaysia, The United Arab Emirates, South Africa, Australia, and Sudan. We can always gain the trust of clients thanks to the products' high quality, the competitive price, profound industrial experience. If you need compact excavator (mini crawler excavator), please contact us without hesitation.
