Main Features of Crawler Excavator, Crawler Digger
1. Engine: ISUZU (Japan).
2. Imported pump, valve and motor from Japan or Korea.
3. Our crawler excavator (crawler digger) have high rigidity cabin are capacious and comfortable with broad field of vision and anti-fatigue, which can ensure the driver's safety and pleasure.
4. Reasonable structure of man-machine engineering design with central lubrication system makes it easier to make maintenance and greatly reduces the cost.
5. A name-brand operating system with an effective combination of imported pipe and joint can guarantee the longer operating life and makes it easier to keep maintenance.

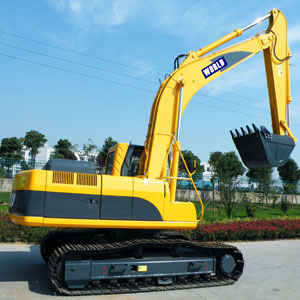

Crawler Excavator, Crawler Digger
Main Specification of Crawler Excavator, Crawler Digger
Items |
Models | |||
| E210 | E239 | E329 | ||
| Engine System | ||||
| Brand & Origin | Cummins B5.9-C(USA) | Isuzu (Japan) | Isuzu (Japan) | |
| Model | B5.9-C | CC-6BG1TRP | AA-6HK1XQP | |
| Rated Power (kw/rpm) | 112/1950 | 125/2100 | 183.9/2200 | |
| Max. Torque (N.m) | 614/1500rpm | 637.9/1800rpm | 872.8/1700rpm | |
| Idle Speed (rpm) | 1950 | 950 | 1050 | |
| Engine Displacement (L) | 5.9 | 6.949 | 7.79 | |
| Cylinder No.-Bore x Stroke (mm) | 6 | 6-105×125 | 6-115×125 | |
| Engine Oil Capacity (L) | 20 | 17.5-21.5 | 28-36 | |
| Fuel Tank Capacity (L) | 360 | 394 | 630 | |
| Fuel Consumption Rate (g/kw.h) | 221 | ≦237 | ≦236.6 | |
| Hydraulic System | ||||
| Main Pump | Brand & Origin | Doosan from Korea | Kawasaki (Japan) | Kawasaki (Japan) |
| Rated Pressure (MPa) | 31.9 | 34.3 | 31.4/34.3 | |
| Nominal Displacement (cm3/rev) | 2×215 L /min | 112×2 | 132.5×2 | |
Multiple Unit Valve |
Brand & Origin | Jeil from Korea | Kawasaki (Japan) | kawasaki (Japan) |
| Rated Pressure (MPa) | 31.9 | 34.3 | 31.4/34.3 | |
| Hydraulic Motor | Travel Motor Brand & Origin | Jeil from Korea | Nabtesco (Japan) Nabtesco |
KYB (Japan) KYB |
| Traveling Speed (H/L km/h) | 3.3/5.4 | 5.5/3.5 | 4.7/2.9 | |
| Swing Motor Brand & Origin | Jeil from Korea | Kawasaki (Japan) | Kawasaki (Japan) | |
| Swing Speed (r/min) | 11.5 | 10 | 10.5 | |
| Hydraulic Cylinder | Boom Cylinder (mm) | Ф120xФ85x1285 (mm) | 125×90 | 140×100 |
| Arm Cylinder (mm) | Ф135xФ95x1490 (mm) | 140×105 | 160×110 | |
| Bucket Cylinder (mm) | Ф115xФ80x1120 (mm) | 130×90 | 140×100 | |
| Hydraulic Oil Tank Capacity (L) | 250L/420L | 180-210 | 310 | |
| Working Specifications | ||||
| Weight (kg) | 20.5 | 23900 | 33000 | |
| Bucket Capacity (m3) | 0.9 | 1.1 | 1.38 | |
| Bucket Width (mm) | 1189 | 1256 | 1282 | |
| Bucket Digging Force (kN) | 115 | 150 | 171 | |
| Arm Digging Force (kN) | 92.5 | 119 | 150 | |
| Ground Pressure (KPa) | 45 | 52 | 60 | |
| Grade ability | 70%(35) | 70% | 70% | |
| Max. Digging Depth (mm) | 6620 | 6940 | 7300 | |
| Max. Digging Height (mm) | 9305 | 9680 | 10200 | |
| Max. Digging Radius (mm) | 9853 | 10290 | 1110 | |
| Max. Discharging Height (mm) | 6475 | 6786 | 7150 | |
| Min. Ground Clearance (mm) | 468 | 460 | 503 | |
| Min. Swing Radius (mm) | 3585 | 2940 | 3450 | |
| Overall Dimensions (mm) (L×W×H) | 9549*2800*3073 | 13144×2890×3100 | 14505×3190×3141 | |
World Equipment is a professional Chinese manufacturer and supplier of crawler excavators (crawler diggers). E210 crawler excavator (21 Ton), E239 crawler excavator (23 Ton), E329 crawler excavator (32 Ton) we have sold over the past 10 years have gained a good response from the market. Clients from Europe, South America, Middle East, Southeast Asia and Africa all thought highly of them. They are equipped with the original engine called Isuzu (Japan). In the hydraulic system, Main Pump comes from Tongmyung (Korea) and Kawasaki (Japan),Multiple Unit Valve comes from Parker (Korea)and Kawasaki (Japan),Travel Motor comes from Doosan (Korea), Nabtesco (Japan), KYB (Japan),Swing Motorcomes from Jeil (Korea)and Kawasaki (Japan). It is these high-quality parts that ensure the excellent performance and operational capacity of our crawler excavator (crawler digger). If you need to buy crawler excavator (crawler digger), please contact us since we believe that we will not disappoint you.
-
