Description of Single Drum Vibrating Roller
R220C、R218C、R216C、R214C、R212C、R210C heavy duty single drum vibrating roller effect powerful centrifugal force and great static linear load, They are suitable for non-cohesive materials, such as sandy soil, gravel, crushed stones, rock fillings and slightly cohesive soil, gravel, crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, airports, harbors, railways and industrial areas etc.

Main Features of Single Drum Vibrating Roller
1. Mechanical travel drive double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.
2. Reliable D6114 or YC6108 diesel engine for convenient operation and maintenance.

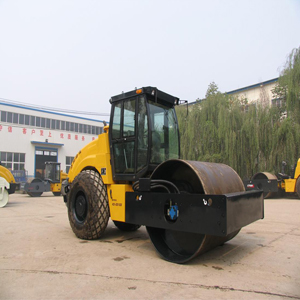

Single Drum Vibrating Roller

Single Drum Vibrating Roller

3. Two sets of brake devices, a hand brake and foot pedal brake, assure the single drum vibrating roller safety and dependability.
4. Spacious and comfortable cab mounted on top quality rubber damping elements.
5. World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.
6. Equipped with padfoot or removal padfoot as option.

Main Specification of Single Drum Vibrating Roller

MODEL   R220C
R218C
R216C
R214C
R212C
R210C
Operating mass kg 20000/18000 16000/14000 12000/10000
Static linear load N/cm 460/415 378/342 276/230
Vibration frequency Hz 30 30 30
Vibration amplitude Mm 2.0/1.0 2.0/1.0
1.8/0.9
1.8/0.9
Centrifugal force KN 360/220
340/220
320/180
290/160
270/140
240/130
Travel speed
1st gear   2.0 2.0 1.8
2nd gear   4.0 4.0 3.7
3 nd gear   10.5 10.5 9.7
Grade ability 35 35 35
Turning angle ° 35 35 35
Ground clearance mm 432 432 360
Electrical overage v 24 24 24
Turning radius mm 7500 7500/7000 7000/6500
Vertical oscillation   8 8 8
Tyre size   23.1-26 23.1-6 17.5-25
Overall length mm 5820 5820 5640
Overall width mm 2280 2278 2258
Overall height mm 3000 3000 2970
Vibration round width mm 2100 2100 2100
Drum diameter mm 1600 1600 1400
Drum rim thickness mm 46/40 32/24 24
Wheelbase mm 3160 3160 3080
Diesel model   D6114ZG6B YC6108ZG
YC6108G
YC6108G
Diesel power Kw 132 105/85 85
Diesel speed r/min 2000 2000 2000
Fuel tank capacity L 180 180 180
Hydraulic tank capacity L 150 150 150

We produced single drum vibrating roller has been exported to Europe, South America, Middle East, Southeast Asia and Africa, and it is very popular there. World Equipment is a leading Chinese manufacturer and supplier of road roller in our over 10 years export experience. We offer six types of single drum vibrating roller, namely, R210 (10 Ton), R212C (12 Ton), R214C (14 Ton), R216C (16 Ton), R218C (18 Ton), R220C (20 Ton). If you need single drum vibrating roller, please contact us.
